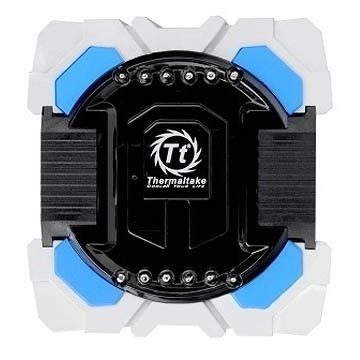

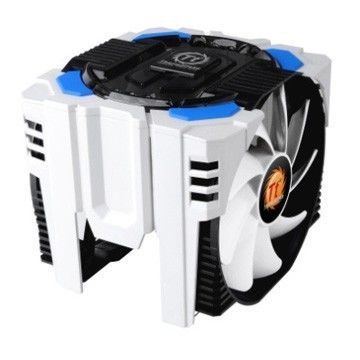

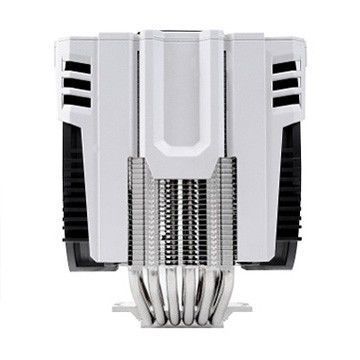

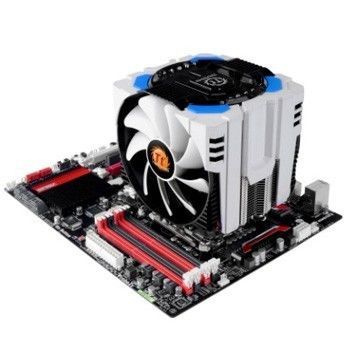

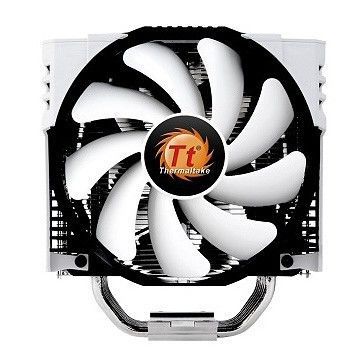

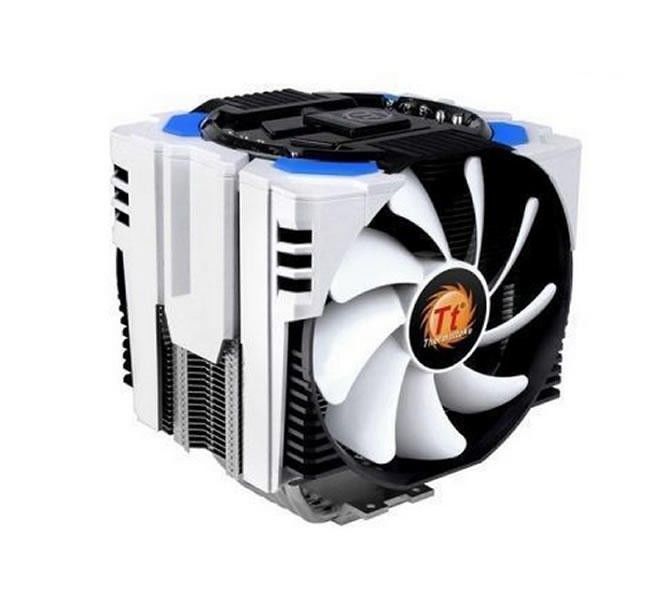

Cooler CPU Thermaltake Frio OCK Snow Edition, CL-P0604 - BOX
Marca:Thermaltake
(0)
SKU: CL-P0604
à vista
R$ 305.15
no PIX com 15% descontoR$ 359.00
em até 12x de R$ 29.92sem juros no cartão
Características
Garantia: 3
Compartilhar
SOBRE
ESPECIFICAÇÕES
Marca
Thermaltake
Modelo
FRIO OCK SNOW EDITION
P/N
CL-P0604
Compatibilidade
Intel Socket
LGA 2011
LGA 1156
LGA 775
AMD Socket
AM3
AM2+ / AM2
Dimensões
143(L) x 136.8(W) x 158.4(H) mm
Material do Heatsink
Aluminum Fins

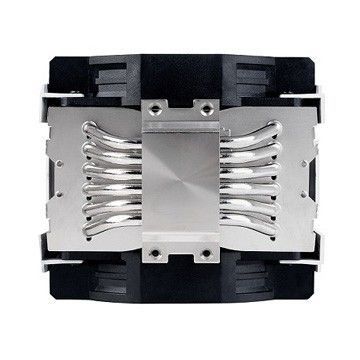

Aluminum & Copper Base

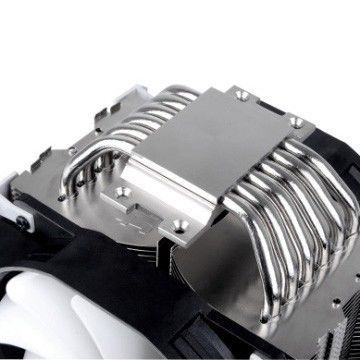

Heatpipe
Ø6mm x 6 PCS
Dimensões do Vent
130(L) x 130(H) x 25(W) mm
Rated Voltage
12 V
Corrente
1.2 A
Potência de Entrada
14.40 W
Velocidade do Ventilador
1200 ~ 2100 RPM
Fluxo de Ar Max.
121.0 CFM
Max. Pressão de Ar
3.12 mmH2O
Ruído
21 ~ 48 dBA
Vida Útil
50,000 hrs @ 40℃
Conector
3 Pin
Potência de refrigeração
240W
INFORMAÇÕES ADICIONAIS
Guia para instalar
Placa mãe INTEL
| Etapa 1 | Etapa 2 |
 |
 |
| Before installing the CPU cooler onto the motherboard, you need to remove the fan module. As the arrows in the picture show, first pull the fixation levers carefully apart and then lift the fan module to the top. | Now remove the protective tape from the cooler bottom. Use a screwdriver to attach the spring-screws to the cooler bottom. |
| Etapa 3 | Etapa 4 |
 |
 |

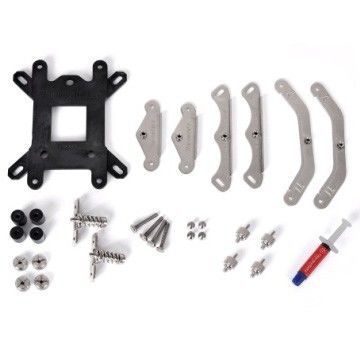

| Now use the Thermaltake universal back-plate and install it onto the backside of your motherboard. | In the next step install the four black plastic nuts from the front of the motherboard onto the screws of the back-plate. |
| Etapa 5 | Etapa 6 |
 |
 |
| Now fix the retention module onto the black nuts and install the metal nuts on top of the screws to fix the retention module. | For LGA2011: Screwing the LGA 2011 screw onto motherboard tightly and put the two Intel mounting bars on the LGA 2011 screws. Fasten the four nuts onto the mounting bars tightly. |
| Etapa 7 | Etapa 8 |
 |
 |
| It’s time to apply the bundled thermal paste. | To fix the CPU cooler to the motherboard, use a screw driver and install the spring screws tightly. |
| Etapa 9 | Etapa 10 |
 |
 |
| Now put the fan module onto the heat-sink and make sure it is installed tightly. | In the final step, plug the fans’ power cord into the corresponding power connector on the motherboard. |
Placa mãe AMD
| Etapa 1 | Etapa 2 |
 |
 |
| Before installing CPU cooler onto Motherboard, you need to remove fan cover. As the arrow in the picture, pull out two sides of fan cover and then lift it up. | First remove the protective tape from the cooler bottom, and then use a screwdriver to attach the spring-screws to the cooler bottom. |
| Etapa 3 | Etapa 4 |
 |
 |
| Again use a screwdriver in order to remove the pre-installed retention module and back-plate from the motherboard. | Now use the Thermaltake universal back-plate and install it onto the backside of your motherboard. |
| Etapa 5 |
Etapa 6 |
 |
 |
| In the next step, install the four black plastic nuts from the front of the motherboard onto the screws of the back-plate. | Install the fan clips onto the heat-sink separately. |
| Etapa 7 |
Etapa 8 |
 |
 |
| Now fix the AMD processor retention module onto the black nuts. | Install the metal nuts on top of the screws to fix the retention module and apply the bundled thermal paste. |
| Etapa 9 | Etapa 10 |
 |
 |
| To fix the CPU cooler to the motherboard use a screw driver and install the spring screws tightly. | Now put fan cover onto the heat-sink and make sure it is installed tightly. |
|
Etapa 11
|
|
 |
|
| In the final step plug the fans’ power cords into the corresponding power connectors on the motherboard. |
