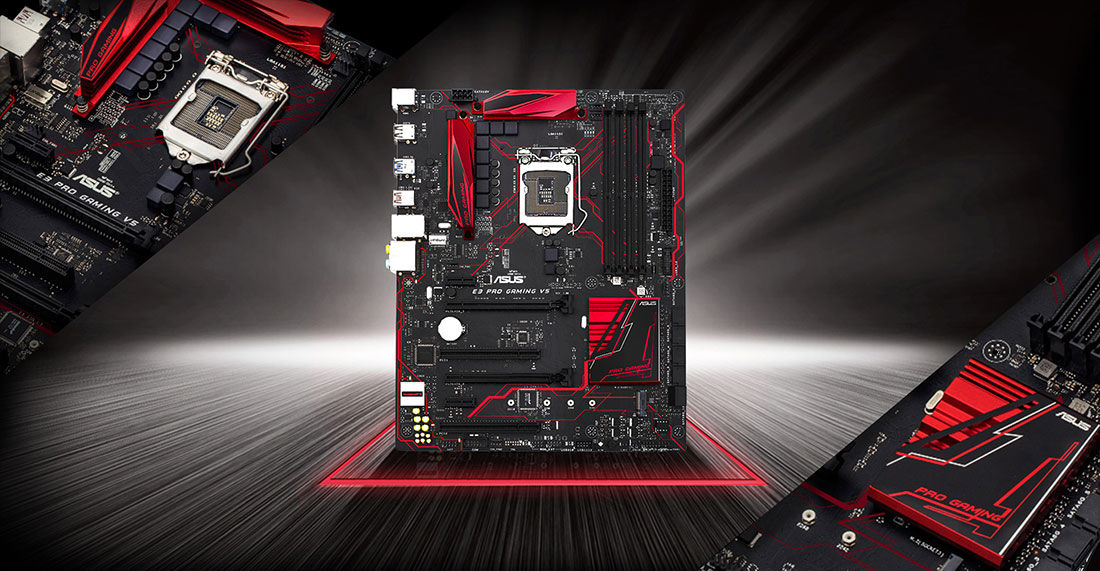

Placa Mae Asus E3-PRO GAMING V5 DDR4 Socket LGA1151 Chipset Intel C232

Especificações

Marca
ASUS

Modelo
Z170-K

CPU
Intel® Socket 1151 para Xeon® E3-1200 v5 and 6th genereation CoreTM, Pentium® and Celeron® Processadores
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Chipset
Intel® C232

Memória
4 x DIMM, Max. 64GB, DDR4 2133 MHz ECC, Non-ECC
Suporta Dual Channel
Suporta Intel® Extreme Memory Profile (XMP)
2133 Mhz

Multi-GPU
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology

Slots de expansão
1 x PCIe 3.0/2.0 x16 (x16 mode, )
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
2 x PCIe 3.0/2.0 x1
2 x PCI

Armazenamento
Intel® C232 chipset :
1 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)*2
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology Enterprise supports*3

LAN
Intel® I219LM, 1 x Gigabit LAN Controller(s), GameFirst technology

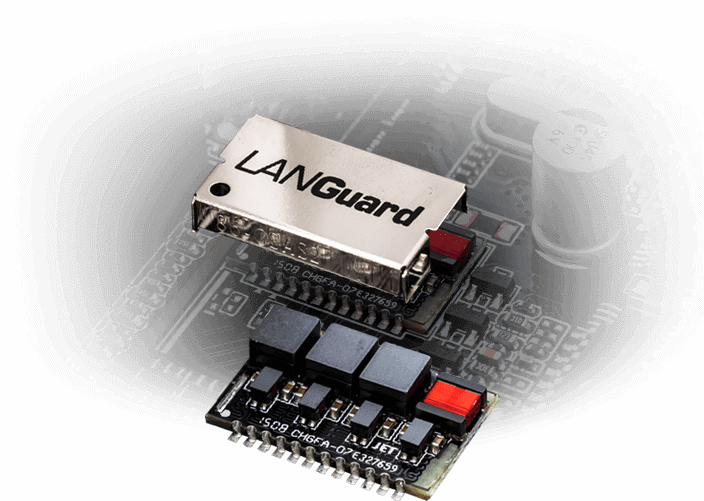

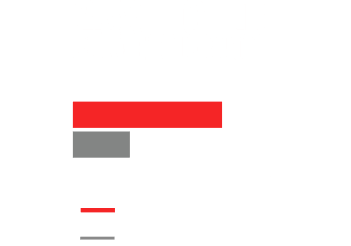

Anti-surge LANGuard

Áudio
SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II

USB
1 x USB 3.1 port(s) (Type-A)
1 x USB 3.1 port(s) (Type-C, Reversible)
6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

Características especiais
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS EPU :
- EPU
ASUS Exclusive Features :
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
RAMCache

Sistema
Windows® 10 , 64bit
Windows® 8.1 , 64bit
Windows® 7 , 32bit/64bit *4

Conectores Externos
1 x PS/2 Teclado
1 x PS/2 Mouse
1 x LAN (RJ45)
1 x USB 3.1 Type-A
1 x USB 3.1 Type-C
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Conectores Internos
1 x USB 3.0
2 x USB 2.0
1 x M.2 Socket
1 x COM
6 x SATA 6Gb/s
1 x CPU Fan c
3 x Ventoinha do chassi
1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x Áudio painel frontal
1 x Painel do sistema
1 x Sensor de controle térmico
1 x CPU OV
1 x Clear CMOS jumper
1 x Water Pump header (4-pin)
1 x ROG extension (ROG_EXT)

Acessórios
Manual do usuário
I/O Shield
4 x Cabo SATA 6Gb/s
1 x M.2 Screw Package
1 x Pacote de organizadores de cabo
1 x Supporting DVD
1 x 12 in 1 Cable Label (s)

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Disco de Suporte
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Formato
ATX 30.5 cm x 24.4cm
